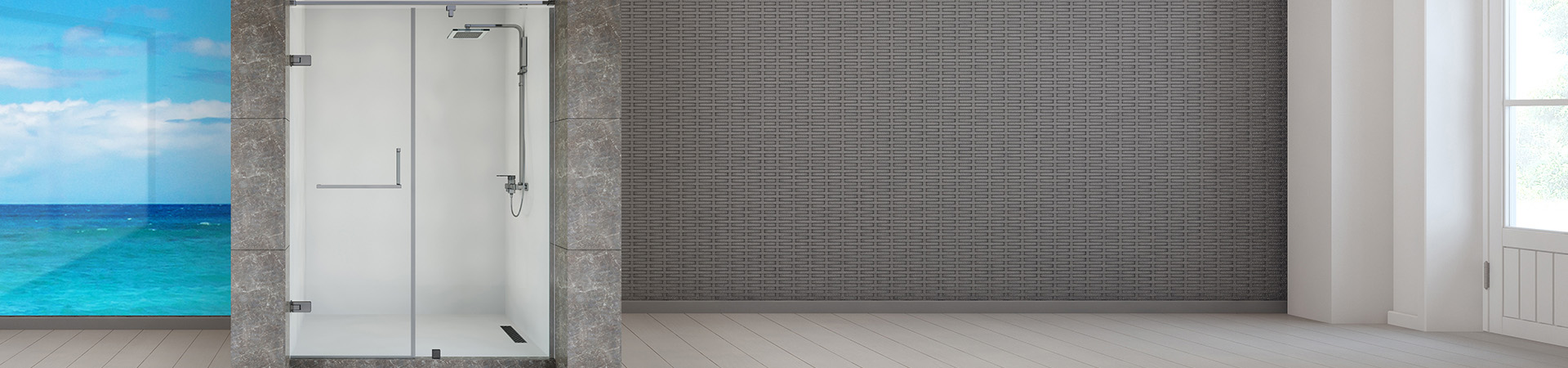

Shower Enclosures

• Readily available in standard sizes
• Separates dry and wet areas and optimises bath spaces
• Easy Clean (Anti Limescale Treatment)
• Brass Hardware
• Made of toughened safety glass and high-quality hinges
• Choose from Frameless, Semi-framed and Framed enclosures
• One-stop solution (Design – Installation – Maintenance)
• Available at leading sanitaryware stores
• 5 Years Warranty on Hardware

Quality checks

• Fragmentation test: to check breakage pattern of glass
• Zebra test: no waviness
• Ball drop test (impact resistance): to check strength at point of impact
• Visual defects: to check bubbles, scratches, chipping at edges and other visible defects
• Free fall test: to check overall strength of glass, by throwing the glass freely on a plain surface

Glass

Tempered glass: Option of 6 mm, 8 mm and 10 mm.
Advantages of tempering/toughening glass:

• 4-5 times stronger then normal float glass
• Breaks into small pieces/dices minimising risk of injury
• Can resist thermal stress as edge strength is higher

Tempering done at Jaquar's own fully automatic state of the art tempering unit

• Tempering for shower enclosure glasses only
• 90% of an enclosure is glass, so glass must conform to the highest safety standards as it is used in the bathroom

Standards

• These standards ensure that the glass passes stringent quality parameters
• Ensures consistency
• Enhances life of the product conforms to both European and Indian standards

Reference: India

• IS 2553 (part 1: 1990)
• IS 14900: 2000
• IS 2835: 1987

Reference: Europe

• En 14450: 2000
• Adheres to European toughening norms

Glass Connectors

• Minimalist and sleek design to match the hinges
• Made of brass with nickel and chrome plating

Hardware

Frameless Range

• Hinges
  • Minimalist and sleek design to make entire enclosure look aesthetically appealing
  • Made of brass with nickel and chrome plating
  • Automatic closing up to 300
  • Tested for 5 lakh cycles
  • Rust proof screws
  • Screw caps
  • Protective film on the hardware to prevent scratches etc.
  • Designed to carry loads of up to 25 kg (per hinge)
  • Gasket
  • Food grade plastic

Stabilisers

• SS 304 grade
• Mirror finish to match chrome finish of the hinges and connectors
• 19 mm dia.

Towel Bars

• Longest towel rod (405 mmx205 mm) to hang 2 towels
• Brass with nickel and chrome finish
• 19 mm dia.
• No visible screws

Replacement even if it turns yellowish

Profiles instead of wall connectors

• Aluminium profiles with powder coating
• Aluminium is first cut to size, then chemically treated and then powder coated so that there is no chance of rusting
• Adjustment of 15 mm so as to cover undulations in the wall

Plastic Parts

Semi-Framed and Frameless Range:

• Made of food grade plastic
• Finish
  • Sleek to match with hardware
  • Transparent look complementing glass
  • Enhances aesthetic appeal of enclosure
• Concealed magnet ensuring longer life
• 5-year warranty for complete peace of mind

Hinges

• Rise and fall mechanism: door rises 6 - 8 mm above the floor while opening thus preventing any chance of breakage

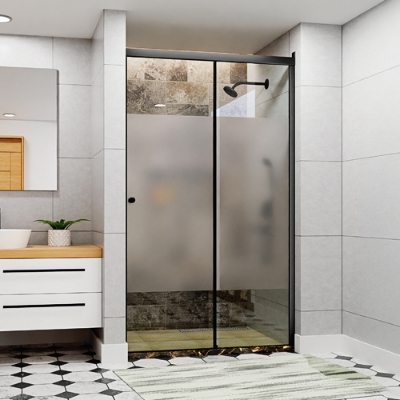

Sliding Range

• Top hung channel - gives free walk way
• Wall profiles: sleek with 15 mm adjustment
• Rollers: ball bearing encapsulated in brass
• 5-year warranty on rollers
